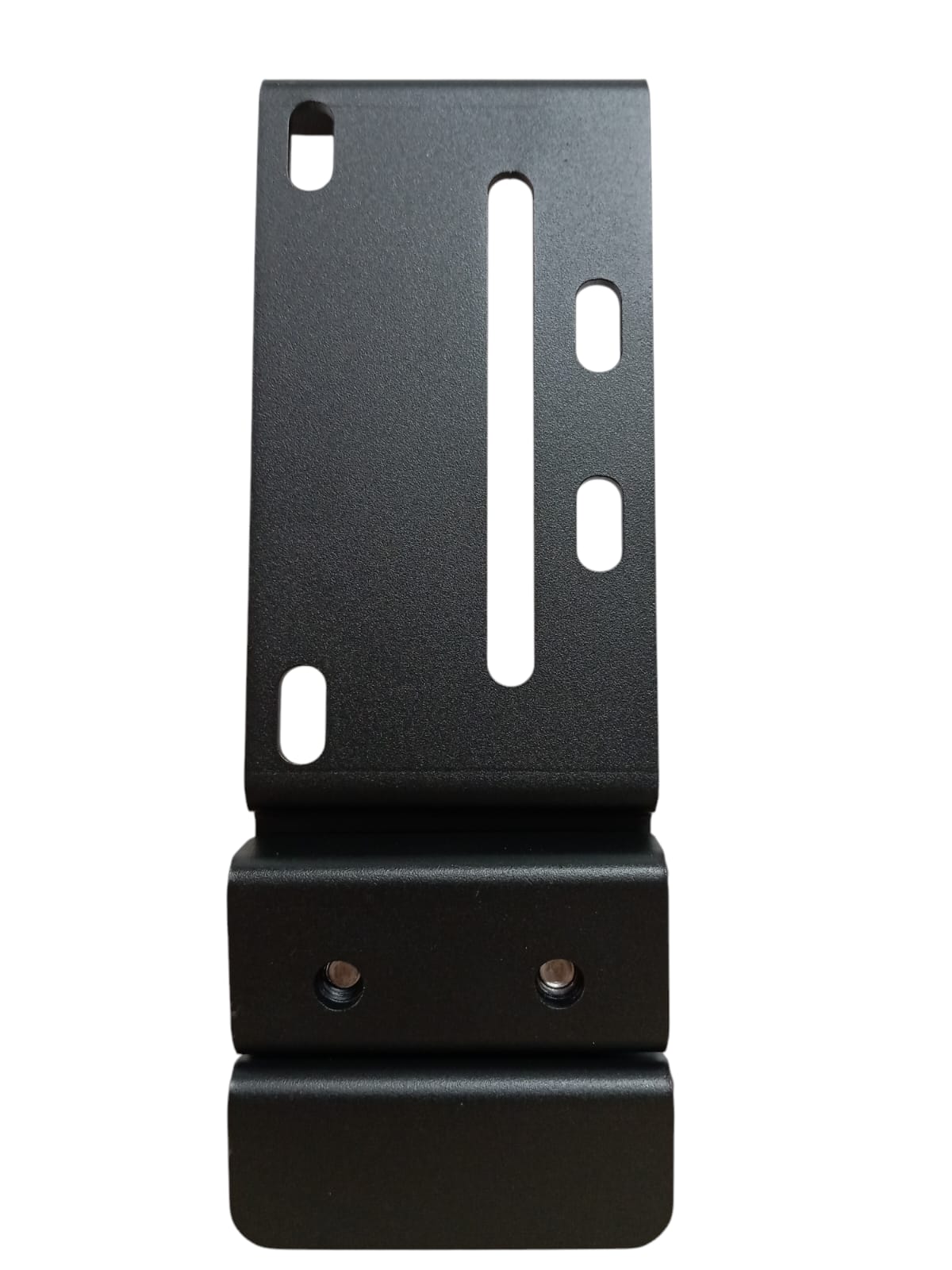

Up to 145mm backplate awnings
Measure your awning backplate before purchasing

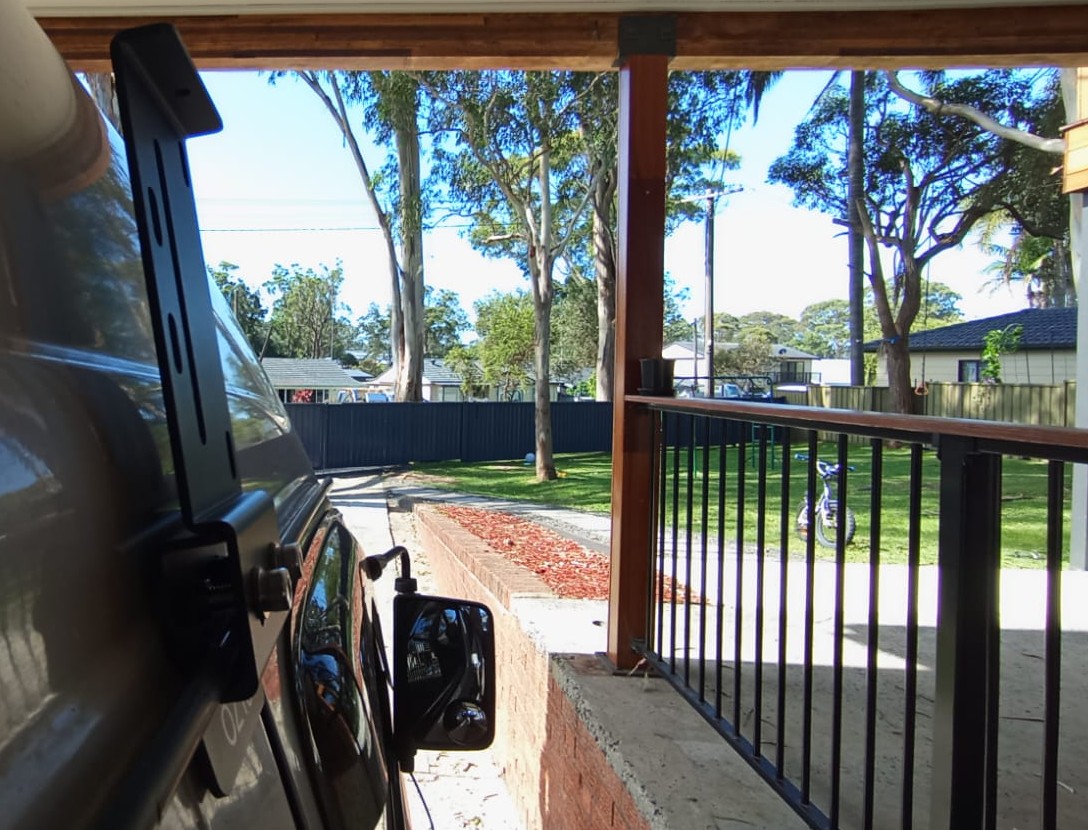

Relays on 40x80mm body panel

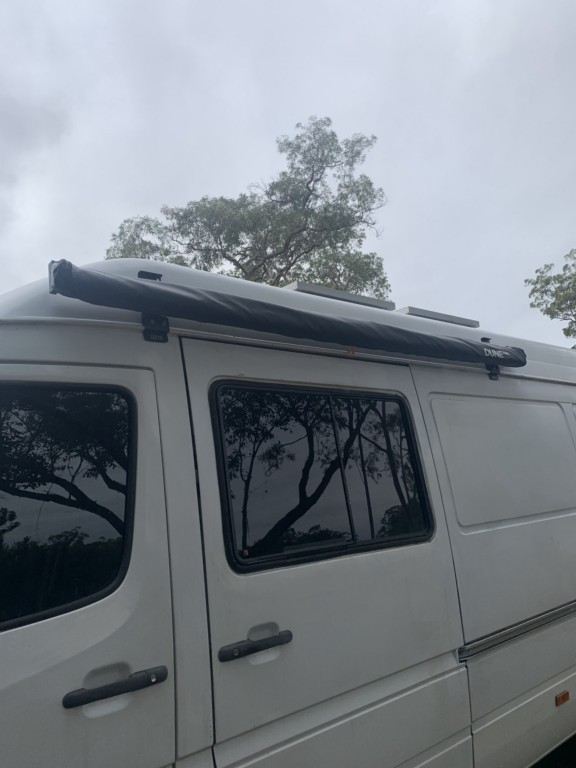

Make sure there's a body panel 80mm wide under the gutter where the bracket can relay. This bracket suit a variety of models like Sprinter T1N, Transit 2000-2005, Hiace 100 Series (not H200).
Holds up heavy accesories
Static loading tests show amazing results, but remember that overloading the bracket you might damage your gutter upon vibration/s - depending on road surface/s
Specifications Table
More information on each product page.
| Awning & Accesories Brackets | Roof Bar/Rack Brackets | |||||||
|---|---|---|---|---|---|---|---|---|
| OZ11 | OZ15 | OZ20 | OZ19 | OZ41 | OZ44hs | OZ44ls | OZ44ms | |
| Needs a cross member? | ❌ | ❌ | ❌ | ❌ | ✅ | ✅ | ✅ | ✅ |
| Carbon Steel | ✅ | ❌ | ❌ | ✅ | ❌ | ✅ | ❌ | ✅ |
| Stainless Steel | ❌ | ✅ | ✅ | ❌ | ✅ | ❌ | ❌ | ❌ |
| Aluminium | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ✅ | ❌ |
| Multislot | ✅ | ✅ | ✅ | ✅ | ✅ | ❌ | ❌ | ✅ |
| Heavy Duty | ❌ | ❌ | ❌ | ✅ | ✅ | ✅ | ❌ | ✅ |
| Low Maintenance | ✅ | ✅ | ✅ | ✅ | ✅ | ❌ | ✅ | ❌ |
| Gutter to Top height | 11CM | 15CM | 20CM | 19CM | 41CM | 44CM | 44CM | 44CM |
| Functional Slots Space | 7.5CM | 10CM | 15CM | 14.5CM | 27CM | 7CM | 7CM | 24.5CM |
| Bracket weight (KG) | 0.265 | 0.228 | 0.259 | 0.690 | 1.645 | 1.8 | 0.6 | 1.75 |
| Bracket width | 4CM | 4CM | 4CM | 8CM | 8CM | 8CM | 8CM | 8CM |
| Base width | 4CM | 4CM | 4CM | 8CM | 16CM | 16CM | 16CM | 16CM |
| Peak Static Load (Downwards) | 225KG | 225KG | 225KG | 315KG | 1960KG | 2300KG | 476KG | 1900KG |
| Colour | Sand Black | Stainless Steel | Stainless Steel | Sand Black | Sand Black | Sand Black | Black Anodized | Sand Black |
| Compatible with 2.5mt standard side awnings | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Compatible with Fiamma F45 You might need also KIT 98655-391/98655-741 Guide: How to Install a Fiamma F45 Awning |
❌ | ❌ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Further enquiries? Please contact us 0439007017 | ||||||||

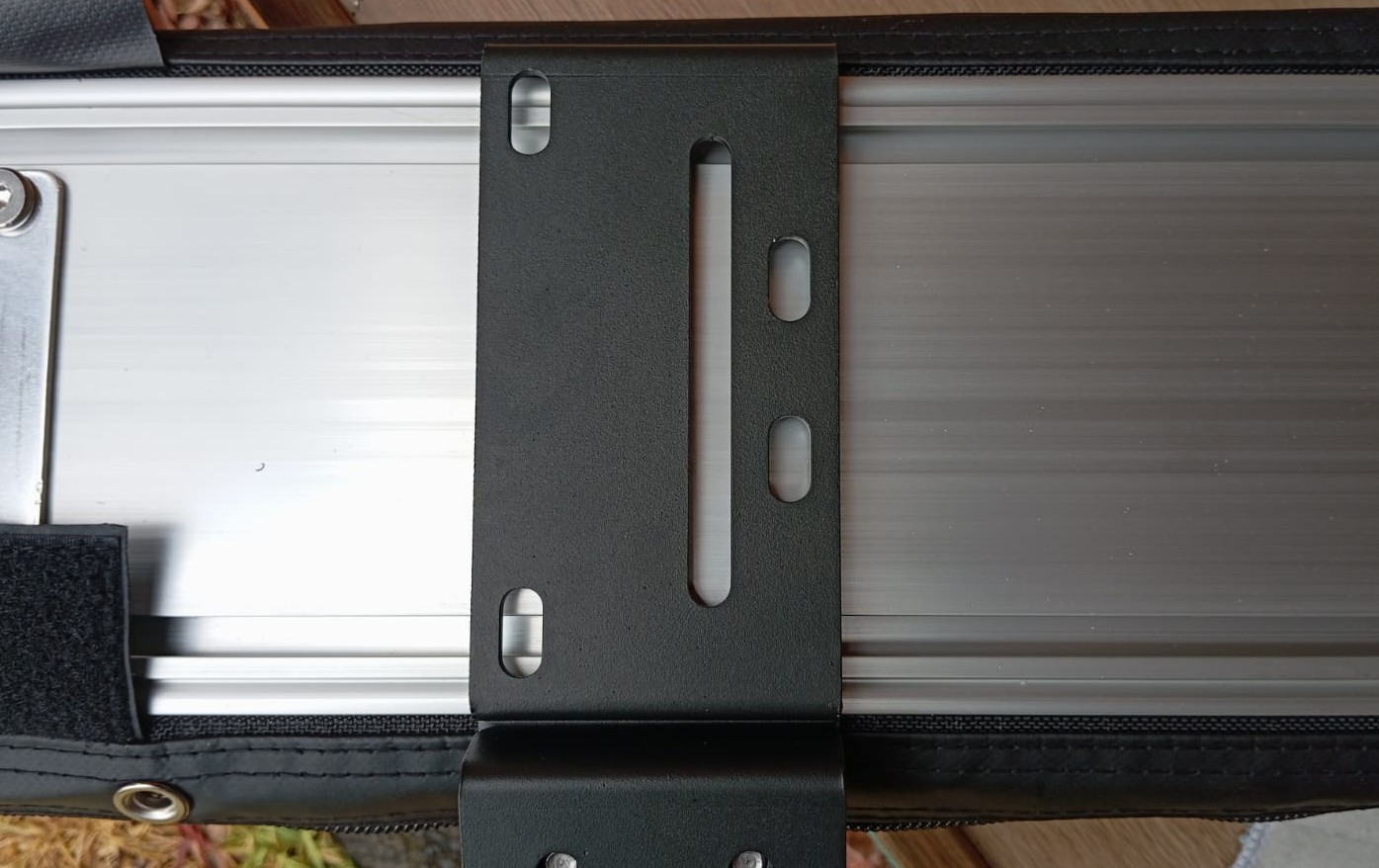

Backplate matters
The size of the backplate is as relevant as the space available on your van/bus model
Standard awnings
Backplates up to 7cm are an easy fit (40mm track separation)
New (wider) awning backplates issue
This is the way to install a newer awnings on our OZ11 bracket. OZ15 supersede OZ11 to avoid this situation.
Oh dear, Fiamma F45
Awnings like Fiamma F45 require (from factory) an adapter kit for a proper installation
Fiamma Adapter Kit Shot 1
A closer shot to show Fiamma adapter kit function to hang your awning
Freestanding awnings with bigger backplate?
Some awning backplates are bigger than our models effective height. Please double check specs before purchasing one or the other to avoid an unusual fitting.
-
